Antennes / SWR, Analyzers, Dummyload
filter_list Filters

SWR, power meters en antennen analyzers en dummyloads





Bezig met laden...
(0)
  • check_circleDummyload 20W
  • check_circle0 tot 500 MHz

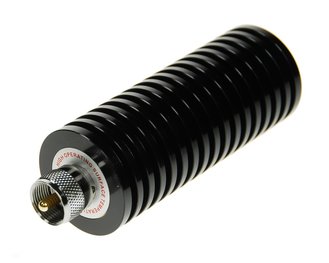

Albrecht dummyload L20-60 met 20 Watt duur en 60 Watt kortstondig.

Gegeven:
  • 0 tot 500 MHz
  • 50 Ohm
  • Vermogen: 20 Watt / Short Term 60 Watt
  • UHF-Male (PL-259) connector
€ 37,50 Incl BTW
( € 30,99 Excl BTW )
(0)
  • check_circleStanding Wave Analyzer
Standing Wave Analyzer 1.8-255 / 300-500 MHz

The CAA-500 is a very accurate, simple to use SWR and impedance analyzer to find antenna resonance and make quick antenna adjustments.
The analog cross-needle meter displays SWR and impedance simultaneously as you sweep the chosen frequency range, instantly providing the information needed.

The NEW COMET CAA-500MarkII retains the cross-needle analog display and adds a full-color TFT LCD screen providing graphic and numerical SWR values along with total impedance with R and X values.

FEATURES:
  • Auto band-sweep function: Switch to the amateur band of choice and press the "Sweep Center" button. The chosen band is swept and SWR graphed in seconds
  • Manual band sweep function: Select the band, select the center frequency, and select the bandwidth to manually sweep the chosen range
  • Multiple manual sweeps: You can overlay manual sweep results in 5 different selectable colors!
  • Make antenna length, position, height above ground, gamma match adjustments etc., and graph each adjustment in seconds in a new color without losing the previous graph!
  • 8-16VDC external power or 6 AA Alkaline batteries (up to 10 hours of operation) or Nickel-Metal Hydride (NiMH)
  • Trickle charger built in (only for NiMH batteries)
  • Battery indicator light
  • Selectable auto-power off time limit
  • SO-239 connector for 1.8-300MHz range
  • N-male connector for 300-500MHz range
  • Operating Range 1.8 - 500 MHz in 35 ranges
  • Impedance Range 12.5 - 300 ohms
  • VSWR Range 1:1 to infinity
  • Oscillator Output 113 dBµ/50 ohm
  • Display Type1.8 inch TFT Color LCD
  • External Power 8-16 VDC 185 mA
  • Size 80x170x60 mm
  • Weight 800 g

Handleiding

€ 529,96 Incl BTW
( € 437,98 Excl BTW )
(0)
  • check_circleAntenne tuner
  • check_circleVHF / UHF band
De Comet CAT-283 VHF en UHF antenne tuner.
Het frequentiebereik loopt van 125-210 Mhz en 400-450 Mhz maximale vermogen is 250 Watt.
Het display is voorzien van een kruisnaald welke gelijktijdig FWD, REF en PWR vertoond.

Gegevens:
  • Frequentiebereik VHF 125-210 Mhz
  • Frequentiebereik UHF 400-450 Mhz
  • Ingangsimpedantie: 50 Ohm
  • Uitgangsimpedantie: 15-200 Ohm
  • Max. ingangsvermogen: 250 Watt (FM)
  • Min. vermogen voor SWR meting: 6 Watt
  • Tolerantie: ongeveer 10%
  • Connector: 2x PL-259 Female (SO-239)
  • Voeding: DC 11-15 volt, ca 250 mA voor display verlichting
  • Afmetingen: 218 x 93 x 120 mm (zonder knoppen en connectoren)
  • Afmetingen: 218 x 98 x 152 mm (met knoppen en connectoren)
  • Gewicht ca. 1,4 kg
€ 374,95 Incl BTW
( € 309,88 Excl BTW )
(0)
  • check_circleSWR en power
  • check_circleAnaloog
De Comet CMX-400 is een SWR power meter tot 200Watt  VHF / UHF van 140 tot  525Mhz.
Een groot en duidelijk kruisnaald display en leest tegelijkertijd FWD / REF en SWR, en om verlies te minimaliseren heeft Comet CMX-400 een ingebouwde sensor voor lage verliezen.
eer goed verlicht in de kleuren rood en groen.

Gegevens:
  • Frequentiebereik 140 tot 525 MHz
  • Vermogensbereik  30/60/200 Watt
  • Impedantie 50 Ohm
  • VSWR 1.2 of minder
  • Verlies  0,2 dB of minder
  • Min. vermogen voor SWR-meting: ongeveer 6 watt
  • Aansluiting SO-239  (PL-female)
  • Display verlichting rood en groen
  • Voedingspanning  verlichting 11-15 Volt
  • Afmetingent 120 x 80 x 105 mm
  • Gewicht ca. 630 gram
€ 157,49 Incl BTW
( € 130,16 Excl BTW )
(0)
  • check_circleDummyload 35W
  • check_circle0 tot 3 GHz
DL 200 N DC-3.0 dummyload met 35 Watt continu en 200 Watt kortstondig.

Gegeven:
  • 0 tot 3 GHz
  • 50 Ohm
  • Vermogen: 35 Watt continu en 200 Watt kortstondig (5 sec. aan 60 sec afkoelen)
  • N-Male connector
  • SWR <= 1.19
€ 69,95 Incl BTW
( € 57,81 Excl BTW )
(0)
  • check_circleDummyload 5W
  • check_circle0 tot 3 GHz
GRO-03 dummyload met 5 Watt.

Gegeven:
  • 0 tot 3 GHz
  • 50 Ohm
  • Vermogen: 5 Watt
  • N-Male connector
€ 24,95 Incl BTW
( € 20,62 Excl BTW )
(5)
  • check_circleSWR en power
  • check_circleDigitaal
The K-PO DG-503 is a High Quality digital SWR & Watt meter for accurate measuring for Forward Power & Reflected Power & VSWR.
Frequency range from 1.6 to 60 MHz (VHF) and from 125 to 525 MHz (UHF) and a power range from 0 to 200 Watt.
The K-PO DG-503 has 1 x UHF-female input connector and 1 x UHF-female connector for the VHF band (1.6 to 60 MHz) and 1 x N-female input connector and 1 x N-female connector for the UHF band (125 - 525 MHz). The K-PO DG-503 voltage is 12 Volt.

Features:
  • Large LCD (3.5") display for easy of reading
  • Forward / Reflected power / VSWR ratio in one push button
  • LCD backlight display
  • Convenient control layout for easy operation
  • DC 12 Volt
Technical specifications:
  • Frequency Range: 1.6 - 60 MHz & 125 - 525 MHz
  • Caibration point: 14MHz - 50MHz - 145MHz - 435MHz
  • Impedance 50 Ohm
  • Power Range: 0 - 200W
  • Accuracy: (+/- 5%)
  • Minimum Power for SWR: 1W
  • Insertion Loss Less than 0.1 dB
  • Testing function: Fwd/Ref Power & VSWR ratio
  • Voltage: 12 Volt
  • Input Connector: 1 x N-female + 1 x UHF-female
  • Output Connector: 1 x N-female + 1 x UHF-female
  • Dimension (W/H/D) mm 140 x 84 x 122
  • Weight (Net): 750 Gram
Package:
  • 1 x K-PO DG503 SWR/Watt meter
  • 1 x 12 Volt DC kabel
  • 1 x User manual (English)
€ 167,95 Incl BTW
( € 138,80 Excl BTW )
(0)
  • check_circleDummyload 35W
  • check_circle0 tot 1 GHz
K-PO DL 200 M dummyload met 35 Watt continu en 200 Watt kortstondig.

Gegeven:
  • 0 tot 1 GHz
  • 50 Ohm
  • Vermogen: 35 Watt / Short Term 200 Watt (5 sec. aan 60 sec afkoelen)
  • SWR: >= 1.16
  • UHF-Male (PL-259) connector
€ 59,96 Incl BTW
( € 49,55 Excl BTW )
(0)
  • check_circleSWR en power
  • check_circleVHF-UHF
De K-PO RS-40 SWR & Watt meter VHF / UHF  140-150 / 430-450 MHz

Gegevens:
  • Duidelijk analoge meter
  • Direct uitlezen van Forward power, Reflected power en SWR
  • Aan/uit-schakelaar
  • Frequentiebereik: 140-150 en 430-450 MHz
  • Meetbaar vermogensbereik: 0-200W schakelbaar 15-60-200W
  • Maximaal vermogen: 200W
  • Nauwkeurigheid: 15W range +/- 10% (AVG)
  • Nauwkeurigheid: 60 en 200W range +/- 5% (AVG)
  • Minimum vermogen voor meting: 1W
  • Invoegverlies: 0,3 dB of lager
  • Testfuncties: Forward power, Reflected power en SWR
  • Impedantie: 50 Ohm
  • Afmetingen (B x H x D): 70 x 78 x 30 mm
  • Gewicht: 180 gram
  • Aansluitingen: 2x SO-239 PL plug (UHF-female)
Leveromvang:
  • 1 x K-PO RS-40 SWR/Watt meter
  • 1 x User manual (English)
€ 49,95 Incl BTW
( € 41,28 Excl BTW )
(0)
  • check_circleSWR en power
  • check_circleDigitaal
De K-PO RS-50 digitale SWR & Watt meter VHF / UHF  125 tot 525 MHz

Gegevens:
  • Duidelijk LCD-scherm met achtergrondverlichting
  • Direct uitlezen van Forward power, Reflected power en SWR
  • Aan/uit-schakelaar
  • Kan worden gebruikt met 2x AAA-batterijen (niet meegeleverd) of met de meegeleverde micro-USB-kabel* (230V-hoofdadapter niet meegeleverd) *Niet voor het opladen van de batterijen (de meter heeft geen ingebouwde oplader).
  • Frequentiebereik: 125-525 MHz
  • Meetbaar vermogensbereik: 0-120W
  • Maximaal vermogen: 120W
  • Nauwkeurigheid: +/- 5% (AVG)
  • Minimum vermogen voor meting: 1W
  • Invoegverlies: 0,3 dB of lager
  • Testfuncties: Forward power, Reflected power en SWR
  • Impedantie: 50 Ohm
  • Stroombron: 2x AAA-batterijen (niet meegeleverd), micro-USB-poort (5V / 2.0A)*
  • Afmetingen (B x H x D): 70 x 78 x 30 mm
  • Gewicht: 220 gram (zonder batterijen)
  • Aansluitingen: 2x SO-239 PL plug (UHF-female)
Leveromvang:
  • 1 x K-PO RS-50 SWR/Watt meter
  • 1 x USB kabel
  • 1 x User manual (English)
€ 89,95 Incl BTW
( € 74,34 Excl BTW )
(1)
  • check_circleSWR en power
  • check_circleAnaloog
The K-PO RX-503 is a High Quality analog SWR & Watt meter for accurate measuring for Forward Power & Reflected Power & VSWR.
Frequency range from 1.8 to 525 MHz and a power range from 0 to 200 Watt.

Technical specifications:
  • Frequency Range: 1.8 - 525 MHz
  • Power Range: 0 - 200W
  • Accuracy(high Power): +/- 5% AVG and +/- 5% PEP
  • Accuracy(low Power): +/- 10% AVG and +/- 15% PEP
  • Minimum Power for SWR: 1W
  • Insertion Loss Less than 0.1 dB
  • Testing function: Display of forward & reflected power
  • Features: illuminated cross needle instrument (4.5 cm x 6.3 cm)
  • Three-color display instrument
  • Voltage: 13,8 Volt
  • Input Connector: N-female voor 125 tot 525 MHz en PL aansluitingen van 1,8 tot 200 MHz
  • Dimension (W/H/D) mm 140 x 84 x 122
  • Weight: 950 Gram
Package:
  • 1 x K-PO RX503 SWR/Watt meter
  • 1 x 12 Volt DC kabel
  • 1 x User manual (English)
€ 119,00 Incl BTW
( € 98,35 Excl BTW )
(0)
  • check_circleSWR/power meter
  • check_circleCB 27mc
Met deze K-PO SWR-171 SWR & power meter kun je de SWR controleren telkens wanneer de antenne wordt verplaatst of een nieuw antenne wordt geïnstalleerd, om zo het maximale bereik en signaal sterkte te waarborgen.

Gegevens:
  • Frequentiebereik: 26 - 30 MHz
  • Connector: 2 x SO239 (PL-female)
  • Precisie: SWR +/- 5%  Power +/- 10%
  • Power range 10/100 Watt
€ 28,96 Incl BTW
( € 23,93 Excl BTW )
