Alinco DR-MD520E 2m/70cm VHF/UHF DMR-transceiver met geïntegreerde GPS-ontvangst, APRS-functionaliteit, crossband-repeater, SFR-repeater en automatische repeater-roaming.

Met groot kleurendisplay en digitale voicerecorder (tot 4 uur opname mogelijk)

Technische gegevens

• 144-146 MHz / 430-440 MHz (amateurradiobanden)
• Bedrijfsmodi analoog en digitaal: 16K0F3E / 11K0F3E / 7K60FXD / 7K60FXE
• VHF tot 55 watt zendvermogen / UHF tot 40 watt zendvermogen (reduceerbaar)
• 4000 kanalen, 250 zones, 250 scanlijsten
• weergeven, enz. DMR-ID, roepnaam, naam en GPS-positie
• Importeren en exporteren van CSV-bestanden.
• eenvoudig importeren van DMR-contactdatabase
• Enkel of dubbel kanaal selecteerbaar
• FM-radio-ontvanger met 100 geheugenkanalen en VFO
• diverse handmatig programmeerbare toetsen
• automatische kalibratie via GPS.
• Noodalarm
• Gemengde moduswerking: automatische omschakeling tussen analoge en digitale werking mogelijk
• Crossband repeater en single frequency repeater (digitale) functie
• Bedrijfsspanning 13,8V DC (+/-15%)
• Stroomverbruik max. 15 ampère bij hoog zendvermogen
• Afmetingen: ca. 141 x 40 x 188 mm

Digitale modus:

• 10.000 gespreksgroepen, 250 radio-ID's, 500.000 contactlijsten
• Weergave van beller-ID en naam.
• Selectief bellen met verschillende opties (individueel, groepsgesprek of alle contacten bellen)
• Digitale monitorfunctie
• Er kunnen verschillende tekstberichten worden verzonden (tot 200 alfanumerieke tekens per bericht, kan ook zonder pc-software worden gemaakt)

Analoge modus:

• CTCSS/DCS/DTMF/2-TOON/5-TOON Encoder/Decoder
• 4 verschillende toonoproepen voor relaisbediening
• Automatische repeaterverschuiving programmeerbaar in VFO-modus
• Kill & Stun-functie

Leveringsomvang:

• PC-programmeerkabel ERW-21
• handmicrofoon
• microfoon houder
• mobiele houder ADFM-78
• DC-kabel ADUA-38
• Externe GPS-antenne
• Handleiding in het Engels

Updated version of the popular AnyTone AT-D578UV PRO. Now with Analog APRX RX and Airband RX (AM only).

Features

• Working Mode: Full duplex on UU, UV, VV,VU. Dual RX (Analog + DMR or Analog + Analog)
• True-2-slot: Provide 2-slot communication which allows for 2 talk paths on 1 frequency; ETSI DMR Tier I and II compliant
• Power: VHF 60W/25W/10W; UHF 50W/25W/10W
• Auto-senses digital or analog reception
• 4000 channels + VFO; 10,000 Talk groups with 200,000 digital contacts
• Support Contact Manager
• Display: 1.77 inch TFT color LCD, dual display; dual PA; dual PTT
• Bandwidth: 12.5K/25K (Analog); 12.5K (DMR);
• Weather Alerts
• VOX Function; Digital Recording and Play
• DTMF/2TONE/5TONE encode and decode
• AES256 digital encryption; Zone selection
• SMS via keyboard
• Crossband repeter function
• Ranging function between radios with GPS
• Roaming function; Talker alias function
• Emergency alarm (with GPS data transmission)
• IP connect to Motorola Repeater
• Duplexer Talk(Optional)
• Call interrupt(Optional)

  General
• Frequency Range: 144-146 / 430-440 MHz
• Channel Capacity: 4000 channels
• Channel Spacing: 25KHz (Wide Band), 12.5KHz (Narrow Band)
• Phase-locked Step: 5KHz, 6.25KHz
• Operating Voltage: 13.8V DC ±20%
• Frequency Stability: ±2.0 ppm
• Operating Temperature: -20?~ / +55?

  Transmitter
• Power Output: VHF: 50/25/10/5W / UHF: 45/25/10/5W
• Modulation limit: ±5.0KHz@25KHz (Wide Band) / ±2.5KHz@12.5KHz (Narrow Band)
• Adjacent Channel Power: ?70dB (Wide Band) / ?60dB (Narrow Band)
• Hum & Noise: ?40dB (Wide Band) / ?36dB (Narrow Band)
• Spurious Emission: ?70dBc (Wide Band) / ?70dBc (Narrow Band)
• 4FSK Digital Modulation: 12.5KHz (data) 7K60FXD / 12.5KHz (data + voice) 7K60FXE
• Audio Distortion: ?5%
• Error rate: ?3%

  Receiver
• Sensitivity (12dB SINAD): ?0.25?V (Wide Band) / ?0.35?V (Narrow Band)
• Digital Sensitivity: 0.3uV/-117.4dBm (BER 5%) / 0.7uV/-110dBm (BER 1%)
• Adjacent Channel Digital Sensitivity Selectivity: ?70dB (Wide Band) / ?60dB (Narrow Band)
• Spurious Emission: ?-57dB (Wide Band) / ?-57dB (Narrow Band)
• Spurious Rejection: ?70dB (Wide Band) / ?70dB (Narrow Band)
• Blocking: 84db
• Hum & Noise: ?45dB (Wide Band) / ?40dB (Narrow Band)
• Audio Distortion: ?5%
• Audio Power Output: ?2W

  Inside the box:
• AnyTone AT-D578UV PLUS
• Microphone
• Mounting bracket + screws
• DC power cable with fuse holder + fuses
• Free PC USB program cable
• Free Bluetooth PTT button
• Free GPS antenna
• English user manual

Yaesu is pleased to introduce the new FTM-200DR – 50W VHF/UHF Dual Band C4FM/ FM Mobile Transceiver.

The new FTM-200DR is a C4FM Digital multi-functional transceiver with a single receiver. The FTM-200DR delivers reliable and stable 50W transmit performance.
The heavy-duty heat sink is equipped with FACC (Funnel Air[1]Convection Conductor). The speaker delivers 3W of clear and crisp receive audio which has been specifically tuned for radio communication. 2-inch Full-color display provides high visibility and highlights the frequency of the operating band with selectable color – White, Blue or Red. Front panel of the FTM-200DR is detachable and can be mounted at the most desirable operating position. The new FTM-200DR supports optional Bluetooth® wireless operation using the SSM-BT10 Headset or a commercially available Bluetooth® headset*.
YAESU PMG (Primary Memory Group) function in the FTM-200DR allows PMG-SR Monitor (Primary Memory Group with a Single Receiver).
The display frequency can register up to 5 PMG channels, regardless of the VFO or Memory channel operation. AUTO or MANUAL mode can be selected**.
1104 Memory channels can be programmed with 16-character alpha-numeric tags.
The MAG (Memory Auto Grouping) function allows memory channels to be automatically categorized in each band, ALL, AIR, VHF, UHF and OTHER.
The C4FM digital communication features which are already popular in the market, such as Automatic Mode Select (AMS), Digital Group ID (DG-ID) operation, and Smart Navigation Function are available with the new FTM[1]200DR. The FTM-200DR supports the Worldwide WIRES-X Internet Communication. A Fixed Node using an HRI[1]200, or a Portable Digital Node can be easily set up with the optional SCU-40 cable kit.
New Custom Function List (CFL) of the FTM-200DR quickly recalls a list of frequently used functions by simply pressing the [F Menu] key.
10 functions are listed by default, and up to 8 functions can be customized from the 124 items of the setup menu.

Gegevens:

• Wide-range 108MHz to 999.995MHz receive coverage
• High speed Band Scope (displays the receive status of up to 61 channels centered on the current VFO frequency or up to 21 channels in Memory Mode)
• VFO Band Skip Function
• High-precision 66 channel GPS Receiver
• 1200/9600bps APRS® Data Communication
• VOX function
• Recording Function
• Snapshot Feature (with MH-85A11U)
• microSD Card Slot
• Frequency Ranges:
  A/B Band RX:108 - 137MHz (Air Band)
  137 - 174MHz (144MHz HAM / VHF Band)
  174 - 400MHz
  400 - 480MHz (430MHz HAM / UHF Band)
  480 - 999.995MHz
  TX:144 - 146MHz, 430 - 440MHz
• Circuit Type: Double-Conversion Superheterodyne
• Modulation Type: F1D, F2D, F3E : Variable Reactance Modulation
• F7W : 4FSK (C4FM)
• RF Power Output: 50W / 25W / 5W
• Memory Channels: 1104
• Case Size(W x H x D): Radio Unit 139 x 42 x 132 mm w/o Fan
• Controller 139 x 53 x 18 mm w/o Knob
• Weight: 1.1kg with Radio Unit, Controller, Control Cable

Leveromvang:

• FTM-200DE
• DTMF Microphone SSM-85D
• Radio unit Mounting Bracket
• Bracket for Controller
• Control Cable for operation with mounted front panel
• Control Cable 10ft (3m) for the operation with detached front panel
• USB Cable
• DC Power Cable
• Operating Manual

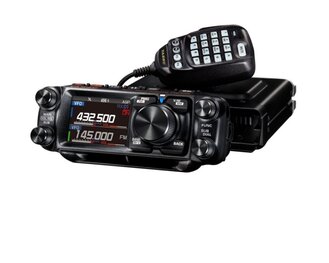

The FTM-510DE ASP shares the core feature set as the old FTM-500DE yet equipped with the new Super-DX and ASP (Audio Digital Signal Processor Unit).

• Super-DX : When the received signal is weak, the sensitivity of the RF amplifier can be increased by activating the Super-DX function in both C4FM digital/ FM analog modes.
• ASP (Audio Digital Signal Processor) : When operating in FM analog mode, the ASP can also be activated in addition to the Super-DX.
  by digitally processing the received FM audio to remove noise, the ASP ensures reliable and comfortable audio quality for weak signals. This helps to expand the communication range.

ASP AUTO mode is also selectable. In this mode, the ASP is automatically activated when the transceiver detects weak signals in FM analog mode.
For intuitive and effortless operation, the PMG and MAG functions of the FTM-510DE ASP have been improved.

PMG (Primary Memory Group): Up to 5 VFO or Memory Channel frequencies can be assigned to the PMG (Primary Memory Group) and monitored. The reception status of the PMG channels is displayed with an orange/ gray-colored bar graph in the PMG screen. When a signal disappears, the bar graph color changes from orange to gray in real time. With the FTM-510DE ASP, the gray bar graphs (historical received signals) automatically fade out 2 seconds after a signal is lost. With the FTM-500DE, the gray bar graphs remain until they are manually reset by pressing the DIAL knob.

Other practical differences of the PMG function between the FTM-510DE ASP and the FTM-500DE are:

(Updated PMG in the FTM-510DE ASP)

AUTO Mode
The PMG channels are scanned and up to two channels with signals are simultaneously received and heard.
Transmission is automatically performed on the received channel.

MANUAL Mode
The PMG channel manually selected to transmit is always scanned and received. Other PMG channels are also scanned and a channel with signal can be received and heard at the same time.
The transmit channel is selectable by rotating the DIAL knob or touching the bar graph of the desirable channel in the PMG screen.

(Current PMG in the FTM-500DE)

AUTO Mode
The PMG channel manually selected to transmit is always scanned and received. Other PMG channels are also scanned and a channel with a signal can be received and heard at the same time.
The transmit channel is selectable by rotating the DIAL knob in the PMG screen.

MANUAL Mode
The PMG channel manually selected to transmit is always scanned and received. Other PMG channels are also scanned and shown in bar graph on display, but audio does not heard.
The transmit channel is selectable by rotating the DIAL knob in the PMG screen.

MAG (Memory Auto Grouping) : In addition to Memory channels which can be recalled by each band, the FTM-510DE ASP has the new “My Group” feature which permits selection of any memory channel regardless of band.
For the current FTM-500DE users, the updated PMG function and “My Group” in MAG feature will be available by updating the firmware if it is preferable. The applicable firmware will be released by the end of February 2025.

*The FTM-510DE ASP does not include the built-in Bluetooth unit. By installing the optional Bluetooth® unit – BU-5, hands-free operation is available with the SSM-BT20 or a commercially available Bluetooth® product.

Gegevens:

• Frequentiebereik 144-145 / 430-440 MHz VHF/UHF
• Modulatie F1D/F2D/F3E/F7W (C4FM)
• Zendvermogen.5/25/50/55 Watt
• Frequentiestappen 5/6.25/8.33/10/12.5/15/20/25/50/100 kHz
• Kanalen 1104
• Bedrijfstemperatuur -20°C tot +60°C
• Frequentie stabiliteit ±2.5 PPM
• Bedrijfsspanning 13.8V
• Stroomverbruik RX: 0.5A, TX: 10A (50W)
• Display High Res Full color touch-panel 2,4 inch
• Ontvanger gevoeligheid Gedetailleerde waarden voor AM/FM/Digitaal (zie volledige specificaties)
• Audio-uitgang Voorzijde 6W, Intern 3W, Extern 3W
• Afmetingen (Radio-eenheid). 132x42x139 mm
• Afmetingen 156x64x58 mm
• Gewicht 1400 gram
• Antenneconnector UHF (PL) vrouwelijk (SO-239)
• Microfoonaansluiting RJ12

Leveromvang:

• Transceiver
• 12V DC-voedingskabel
• Installatiehandleiding (Engels)
• SSM-85D DTMF-microfoon
• Montagebeugel
• Reservezekering (15A)
