Kabels

Sorteer op:

Bezig met laden...

COAX RG-58 CU HQ

(2)

RG-58 COAX
RG 58 CU H.Q.

RG58 coax kabel voor laag verlies en voldoet aan de belangrijkste normen, verkoop is per meter.
De RG58 COAX kabel is CPR (Construction Products Regulation) compliant en heeft ECA classification, meer informatie over de nieuwe EU kabel eisen vindt u hier:
ec.europa.eu/growth/sectors/construction/product-regulation_en

Gegevens:

10 MHz - 0.45dB
50MHz - 1.3dB
100MHz- 1.5dB
200MHz - 2.5dB
1 GHz - 5.6dB
Outer Diameter - 4.95mm
Velocity Factor - 66%
Capacitance PF/M: 100
Inner conductor 19/0.18mm
Screen OD: 3.3mm

€ 0,96 Incl BTW

( € 0,79 Excl BTW )

COAX RG 213 MIL-C-17

(2)

Dikke COAX
MIL-TYPE(CPR/ECA CLASS)

10,3 mm dikke COAX kabel voor laag verlies en voldoet aan de belangrijkste normen, verkoop is per meter. De RG 213 MIL-C-17 COAX kabel is CPR (Construction Products Regulation) compliant en heeft ECA classification, meer informatie over de nieuwe EU kabel eisen vindt u hier:
>ec.europa.eu/growth/sectors/construction/product-regulation_en

Gegevens:

Inner conductor: Plain copper 7 x 0.75 mm
Dielectric: Low density PE Φ7.25 ± 0.18 mm
Outer conductor (shield): Plain copper 240 x 0.13 mm
Shield coverage: 93%
Sheath PVC or LSZH: Φ10.3 ± 0.18 mm
Impedance: 50±3 Ohm
Nominal capacitance: 100 pF/m
Velocity of propagation: 66%
Insulation resistance: >2000 Mohm
Inner conductor resistance: 6 Ohm/Km
Outer conductor resistance: 5 Ohm/Km
Operating temperature range: -30 °C - +70 °C
Copper weight: 59.9 Kg/Km
Cable weight (approx.): 149.7 Kg/Km
Screening effectiveness: >55 dB

€ 2,59 Incl BTW

( € 2,14 Excl BTW )

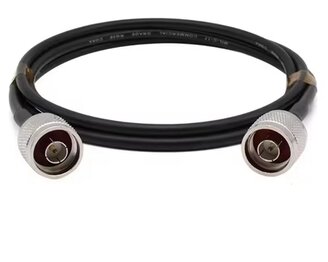

N kabel 50cm

(0)

N-N kabel
50 cm

N-male naar N-male kabel voor o.a. aansluiten van SWR/power meter 50 cm lengte RG58.

€ 12,00 Incl BTW

( € 9,92 Excl BTW )

PL kabel 50cm

(2)

PL-PL kabel
50 cm

Pl-PL kabel voor o.a. aansluiten van SWR meter 50 cm lengte.

€ 6,95 Incl BTW

( € 5,74 Excl BTW )

FME female / FME female 10 meter

(0)

FME-FME kabel
10 meter RG58

RG 58 kabel 10 meter lang FME-female naar FME-female.

€ 32,50 Incl BTW

( € 26,86 Excl BTW )

Procom FME 130000457 3 meter

(0)

FME-FME kabel
3 meter RG58

Procom FME 130000457 RG 58 kabel 3 meter lang FME-female naar FME-female.

The applied RG 58 A/U-L FME coaxial cables are special Procom-designs having a very low loss for RG 58 standard type coaxial cable (below 0.5 dB per m at 900 MHz) and a very precise 50 Ω characteristic impedance.
The cables are produced under continuous automatic control to ensure the high quality. In the design of the FME-connectors the SWR has been minimized ensuring low mismatch loss and maximum power transfer.

€ 22,51 Incl BTW

( € 18,60 Excl BTW )

Procom FME 130000474 5 meter

(0)

FME-FME kabel
5 meter RG58

Procom FME 130000474 RG 58 kabel 5 meter lang FME-female naar FME-female.

The applied RG 58 A/U-L FME coaxial cables are special Procom-designs having a very low loss for RG 58 standard type coaxial cable (below 0.5 dB per m at 900 MHz) and a very precise 50 Ω characteristic impedance.
The cables are produced under continuous automatic control to ensure the high quality. In the design of the FME-connectors the SWR has been minimized ensuring low mismatch loss and maximum power transfer.

€ 22,51 Incl BTW

( € 18,60 Excl BTW )

FME female / FME female 5 meter

(0)

FME-FME kabel
5 meter RG58

RG 58 kabel 5 meter lang FME-female naar FME-female.

€ 17,94 Incl BTW

( € 14,83 Excl BTW )

FME female / BNC male 5 meter

(1)

FME-BNC kabel
5 meter

Procom RG 58 kabel 5 meter lang FME-female naar BNC male. 130000479

The applied RG 58 A/U-L FME coaxial cables are special Procom-designs having a very low loss for RG 58 standard type coaxial cable (below 0.5 dB per m at 900 MHz) and a very precise 50 Ω characteristic impedance.
The cables are produced under continuous automatic control to ensure the high quality. In the design of the FME-connectors the SWR has been minimized ensuring low mismatch loss and maximum power transfer.

€ 22,51 Incl BTW

( € 18,60 Excl BTW )
