  • check_circleStanding Wave Analyzer
Standing Wave Analyzer 1.8-255 / 300-500 MHz

The CAA-500 is a very accurate, simple to use SWR and impedance analyzer to find antenna resonance and make quick antenna adjustments.
The analog cross-needle meter displays SWR and impedance simultaneously as you sweep the chosen frequency range, instantly providing the information needed.

The NEW COMET CAA-500MarkII retains the cross-needle analog display and adds a full-color TFT LCD screen providing graphic and numerical SWR values along with total impedance with R and X values.

FEATURES:
  • Auto band-sweep function: Switch to the amateur band of choice and press the "Sweep Center" button. The chosen band is swept and SWR graphed in seconds
  • Manual band sweep function: Select the band, select the center frequency, and select the bandwidth to manually sweep the chosen range
  • Multiple manual sweeps: You can overlay manual sweep results in 5 different selectable colors!
  • Make antenna length, position, height above ground, gamma match adjustments etc., and graph each adjustment in seconds in a new color without losing the previous graph!
  • 8-16VDC external power or 6 AA Alkaline batteries (up to 10 hours of operation) or Nickel-Metal Hydride (NiMH)
  • Trickle charger built in (only for NiMH batteries)
  • Battery indicator light
  • Selectable auto-power off time limit
  • SO-239 connector for 1.8-300MHz range
  • N-male connector for 300-500MHz range
  • Operating Range 1.8 - 500 MHz in 35 ranges
  • Impedance Range 12.5 - 300 ohms
  • VSWR Range 1:1 to infinity
  • Oscillator Output 113 dBµ/50 ohm
  • Display Type1.8 inch TFT Color LCD
  • External Power 8-16 VDC 185 mA
  • Size 80x170x60 mm
  • Weight 800 g

Handleiding

€ 469,95 Incl BTW
( € 388,39 Excl BTW )
(2)
  • check_circleSWR en power
  • check_circleDigitaal
The K-PO DG-503 is a High Quality digital SWR & Watt meter for accurate measuring for Forward Power & Reflected Power & VSWR.
Frequency range from 1.6 to 60 MHz (VHF) and from 125 to 525 MHz (UHF) and a power range from 0 to 200 Watt.
The K-PO DG-503 has 1 x UHF-female input connector and 1 x UHF-female connector for the VHF band (1.6 to 60 MHz) and 1 x N-female input connector and 1 x N-female connector for the UHF band (125 - 525 MHz). The K-PO DG-503 voltage is 12 Volt.

Features:
  • Large LCD (3.5") display for easy of reading
  • Forward / Reflected power / VSWR ratio in one push button
  • LCD backlight display
  • Convenient control layout for easy operation
  • DC 12 Volt
Technical specifications:
  • Frequency Range: 1.6 - 60 MHz & 125 - 525 MHz
  • Caibration point: 14MHz - 50MHz - 145MHz - 435MHz
  • Impedance 50 Ohm
  • Power Range: 0 - 200W
  • Accuracy: (+/- 5%)
  • Minimum Power for SWR: 1W
  • Insertion Loss Less than 0.1 dB
  • Testing function: Fwd/Ref Power & VSWR ratio
  • Voltage: 12 Volt
  • Input Connector: 1 x N-female + 1 x UHF-female
  • Output Connector: 1 x N-female + 1 x UHF-female
  • Dimension (W/H/D) mm 140 x 84 x 122
  • Weight (Net): 750 Gram
Package:
  • 1 x K-PO DG503 SWR/Watt meter
  • 1 x 12 Volt DC kabel
  • 1 x User manual (English)
€ 129,00 Incl BTW
( € 106,61 Excl BTW )
(0)
  • check_circleSWR en power
  • check_circleAnaloog
The K-PO RX-503 is a High Quality analog SWR & Watt meter for accurate measuring for Forward Power & Reflected Power & VSWR.
Frequency range from 1.8 to 525 MHz and a power range from 0 to 200 Watt.

Technical specifications:
  • Frequency Range: 1.8 - 525 MHz
  • Power Range: 0 - 200W
  • Accuracy(high Power): +/- 5% AVG and +/- 5% PEP
  • Accuracy(low Power): +/- 10% AVG and +/- 15% PEP
  • Minimum Power for SWR: 1W
  • Insertion Loss Less than 0.1 dB
  • Testing function: Display of forward & reflected power
  • Features: illuminated cross needle instrument (4.5 cm x 6.3 cm)
  • Three-color display instrument
  • Voltage: 13,8 Volt
  • Input Connector: N-female
  • Dimension (W/H/D) mm 140 x 84 x 122
  • Weight: 950 Gram
Package:
  • 1 x K-PO RX503 SWR/Watt meter
  • 1 x 12 Volt DC kabel
  • 1 x User manual (English)
€ 119,00 Incl BTW
( € 98,35 Excl BTW )
(0)
  • check_circleSWR meter
  • check_circleCB 27mc

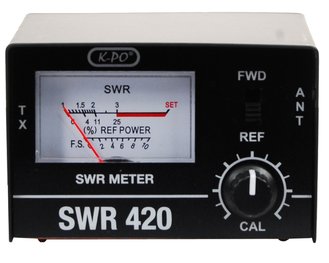

Met deze K-PO SWR-420 SWR meter kun je de SWR controleren telkens wanneer de antenne wordt verplaatst of een nieuw antenne wordt geïnstalleerd, om zo het maximale bereik en signaal sterkte te waarborgen.

Gegevens:
  • Frequentiebereik: 26.565 - 30.105 MHz
  • Connector: 2 x SO239 (PL-female)
  • Precisie: 5%
  • Afmetingen: 85 x 56 x 60 mm
€ 19,95 Incl BTW
( € 16,49 Excl BTW )
(0)
  • check_circleSWR meter
  • check_circlePower meter
Met deze K-PO SWR 430 SWR en Watt meter kunt u de SWR van een antenne en het vermogen van een 27Mhz transceiver controleren, iedere keer wanneer een antenne wordt verplaatst of wanneer een nieuwe antenne wordt geïnstalleerd, om zo het maximale bereik en signaal sterkte te krijgen.

Gegevens:
  • Frequentiebereik: 26.565 - 30.105 MHz
  • SWR en Watt meter
  • RF power: 0-10 / 10-100 Watt
  • Connector: 2 x SO239 (PL-female)
  • Precisie: 5%
  • Afmetingen: 85 x 56 x 60mm
€ 24,95 Incl BTW
( € 20,62 Excl BTW )
(0)
  • check_circleSWR en power
  • check_circleAnaloog
K-PO SX-1000 SWR en Watt meter.
De SX-1000 is een SWR/Watt met 4 aansluitingen ( 2 x PL-259 en 2 X N-Type ) en kan een vermogen verwerken tot 200 Watt.

Gegevens:
  • Frequnetiebereik S1 1,8 - 160MHz / S2 430 - 450MHz / 800 - 930MHz / 1240 - 1300MHz
  • Power range 5/20/200 Watt
  • Sensos 2 sensors (S1/S2)
  • Minimum Power for SWR reading: 1 W. (S1) / 2 W. (S2)
  • Impedantie 50 Ω
  • Display verlichting spanning 12 VDC
  • Verlies < 0,2 dB(S1) / < 0,15 dB(S2)
  • Meet functies: output power, reflected power, SWR
  • Aansluitingen S1 2 x PL-259 & S2  2 x N-Type
  • Afmeting 155 x 63 x 103mm
  • Gewicht890 gram
€ 109,95 Incl BTW
( € 90,87 Excl BTW )
(0)
  • check_circlePL plug
  • check_circleVoor RG58 coax
PL 259 plug voor RG58 coax kabel
Teflon en golden PIN / UHF male RG 58
€ 1,95 Incl BTW
( € 1,61 Excl BTW )
(0)
  • check_circlePL-PL kabel
  • check_circle50 cm
Pl-PL kabel voor o.a. aansluiten van SWR meter 50 cm lengte.
€ 6,95 Incl BTW
( € 5,74 Excl BTW )
